Minco CT425可配置PID溫度控制器

發布時間：2025-12-12 09:08:12     瀏覽：251

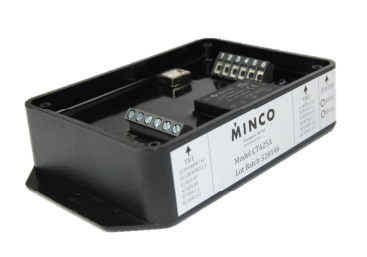

　Minco CT425可配置PID溫度控制器

　Minco CT425是一款多功能、可配置的 PID 溫度控制器，主要特點如下：

CT425 Temperature Controller
PerformanceMeasurement Range-70°C to 6502C (-94°C to 1202°F),F30.25°C full-range accuracy at 25°C
Input PowerModel CT425A:120VAC,50-60Hz
Model CT425B:10.5-60VDC
Model CT425C:240VAC,50-60Hz
Sensor Inputs (RTD)100% or 1000% Platinum,0.00385%/%/°CTCR,
2-wire connection,
Open and shorted sensor detection
Connections5mm spacing terminal block
EnvironmentOutput RatingsOutputMax VoltageCurrent (25C)Current (55C)
120VAC Solid State (CT425A)120VAC6A5A
DC Solid State (CT425B)60VDC15A11A
240VAC Solid State (CT425C)240VAC3A2.5A
Mechanical Relay250VAC/30VDC10A resistive
Logic Voltage4.4V,+/- 0.1V output26mA,+/- 3mA
Temperature Range-20°C to 55°C,90% humidity,non-condensing
MechanicalDimensions5.46” x 3.34” x 1.22”
Weight350 grams (12.3 ounces)
EnclosureUL 94V-0 ABS plastic with epoxy potting

　　Ordering Information

　　To configure your temperature controller,select from the

　　options listed below to determine the complete part number.

CT425Power Supply
CT425A120VAC power,120 VAC solid state relay
CT425B10.5–60VDC power,DC solid state relay
CT425C240VAC power,240 VAC solid state relay
Additional Option:-BTBluetooth Communication
Blank for none
CT425A,CT425A-BT = Sample part number

Minco是專注于為嚴苛應用提供溫度傳感與控制、熱加熱、柔性電路及集成解決方案。其產品廣泛應用于醫療、航空航天、半導體、能源等多個行業。深圳市立維創展科技有限公司優勢分銷Minco產品，歡迎咨詢了解。

推薦資訊

  • 20W C波段BUC：Norsat ELMTBC020-SN
    20W C波段BUC：Norsat ELMTBC020-SN 2025-12-25 09:11:31

    Norsat ELMTBC020-SN 是一款20W C波段室外型上變頻器(BUC)，專為VSAT、衛星新聞采集(SNG)等上行鏈路設計，支持5.85-6.425GHz輸出頻率和950-1525MHz中頻輸入，采用4.90GHz本振頻率和約60dB標準增益，具備高線性輸出（43dBm飽和功率）和優異雜散抑制性能（帶內≤-60dBc）。

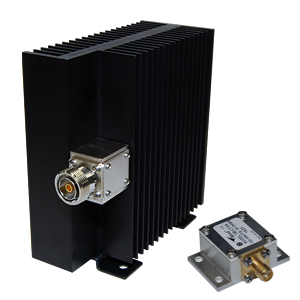

  • Bird 射頻100W射頻終端
